Concrete Washout

Concrete washout is harmful to the environment & can result in heavy EPA penalties. Stratex offers washout bags, bins & filtration units for compliance on your construction project.
Filter By
Items - of
  • Filter By

    • Catalogue View

    • Price

    • Keyword

    • Brand

    • Size

    • Colour

    • Rating

    • Material

    • Pack Type

    • Height (mm)

    • Length (mm)

    • Width (mm)

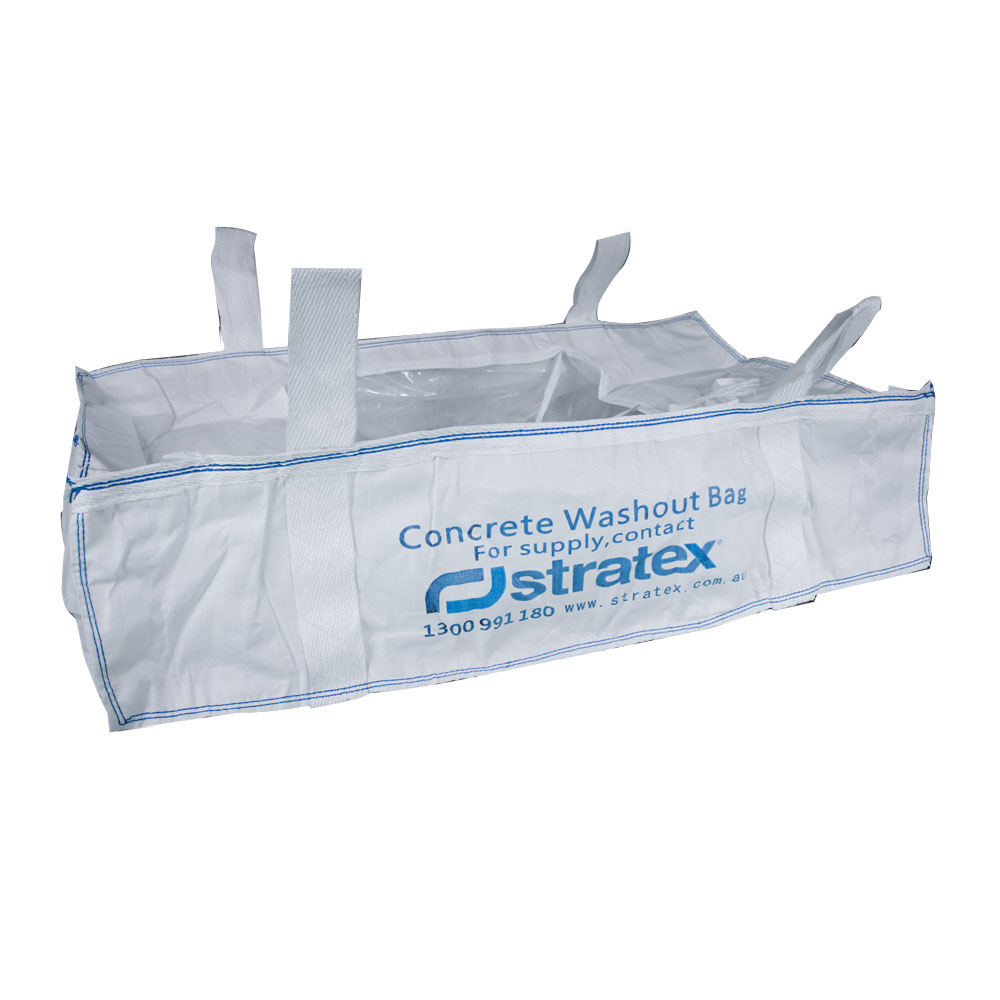

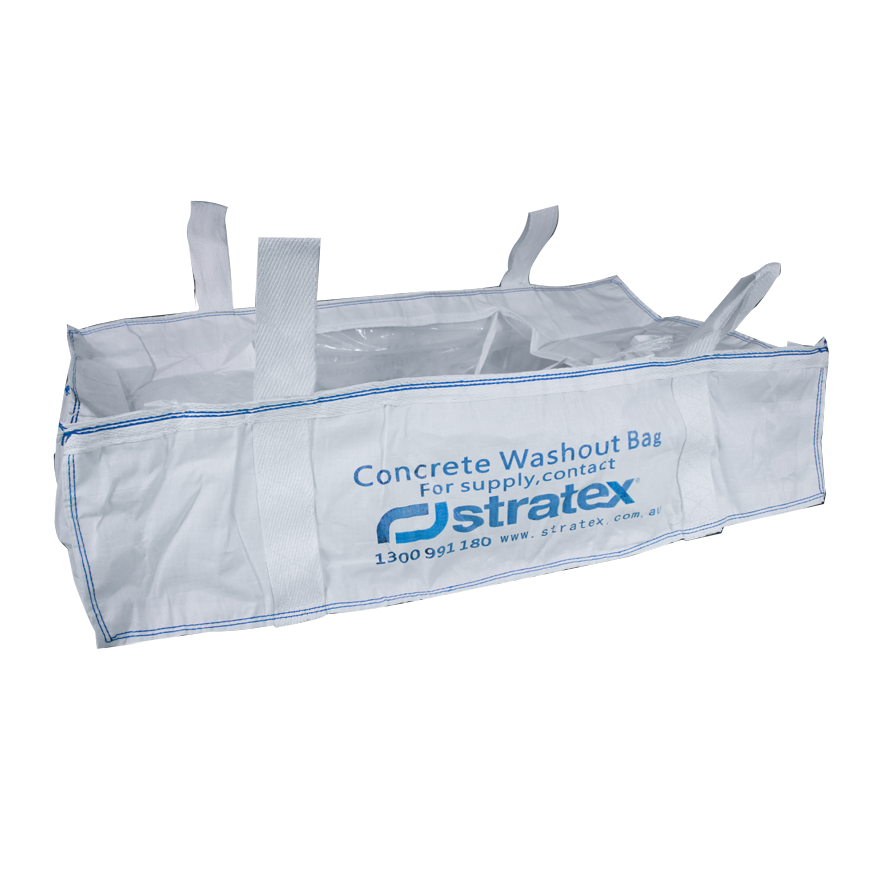

  • Concrete Washout Bag, 2470kg – 177 x 105 x 39 cm

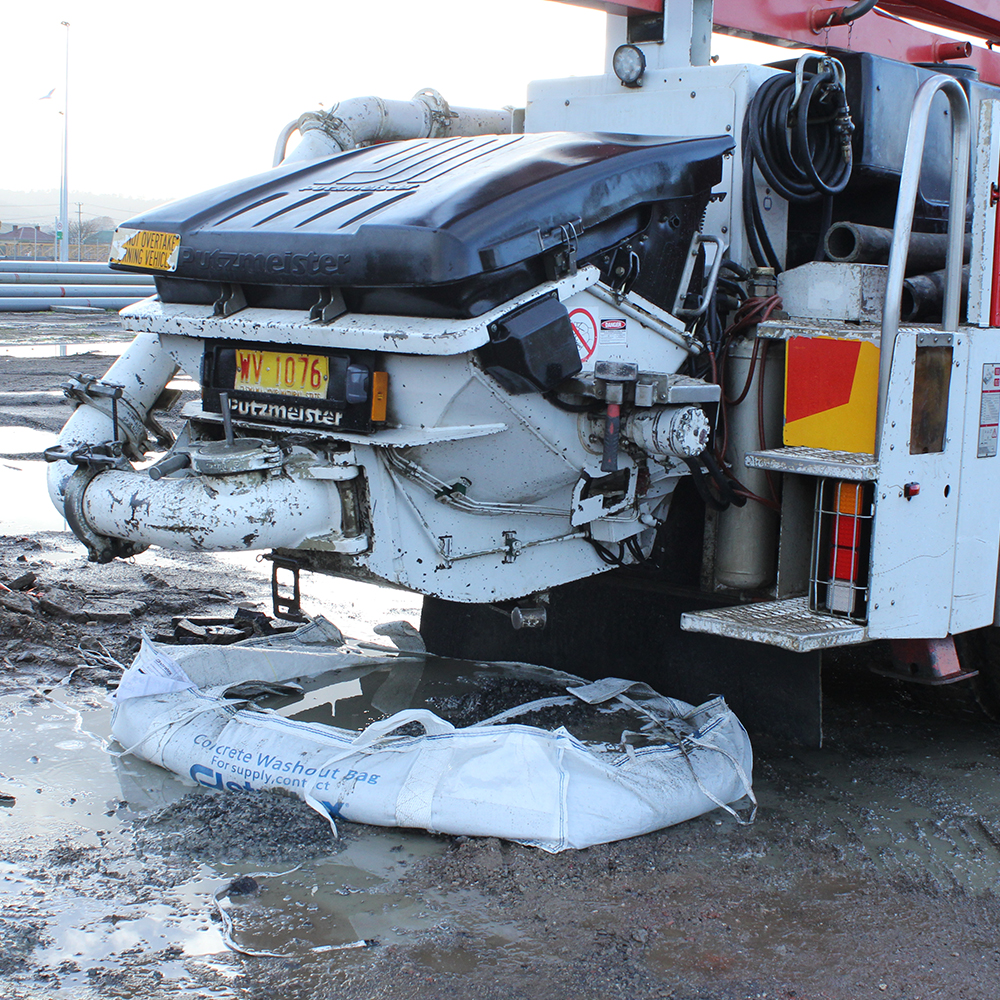

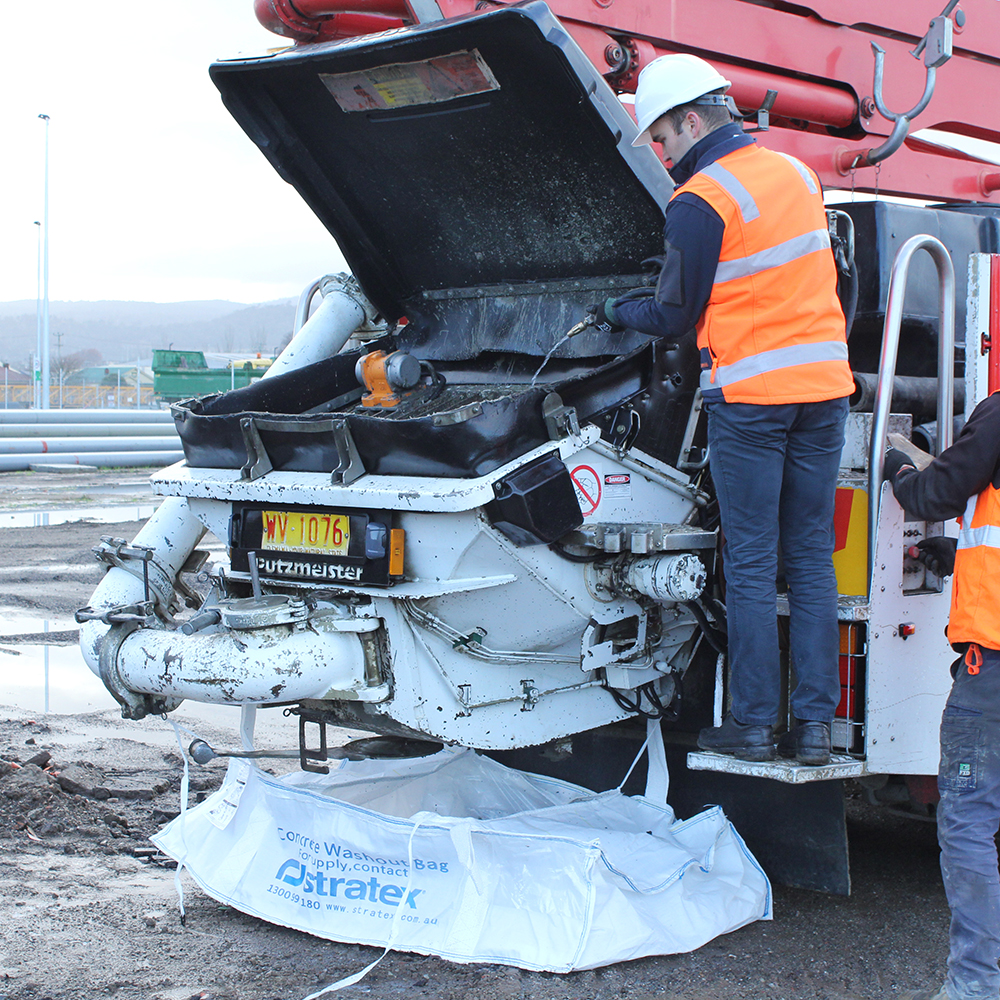

    The Stratex Concrete Washout Bag provides a quick and convenient solution to contain all concrete washout waste. The bag is simply placed under the chute or hopper and the slurry is contained in the plastic/polyethylene inner liner in the bag. When the concrete is set, the bag is forkliftable with built in loops for safe and easy transportation to an offsite location. All bags are fully tested and compliant with Australian Standard AS3668-1989 and have safe working loads listed below. Once set, the Concrete Washout Bag and its contents creates a versatile secondary product to use for car park walls, low retaining walls or designated compounds. The bags are perfect for use in applications such as Civil Construction, Road Construction & Commercial Construction.



    • Dimensions: 177cm L x 105cm W x 39cm H
    • Capacity: 0.70 cubic metres
    • Safe Working Load: 2470 Kg
    • Must only be lifted once waste has become solid

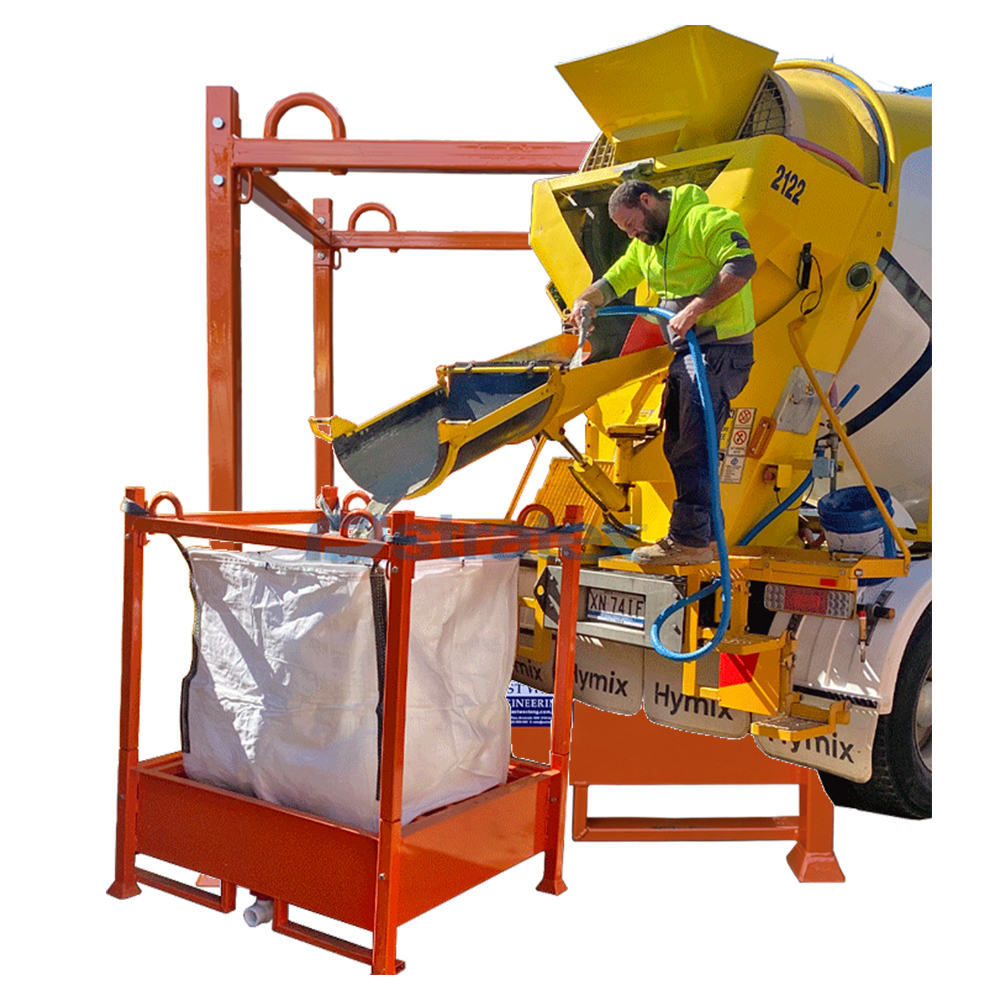

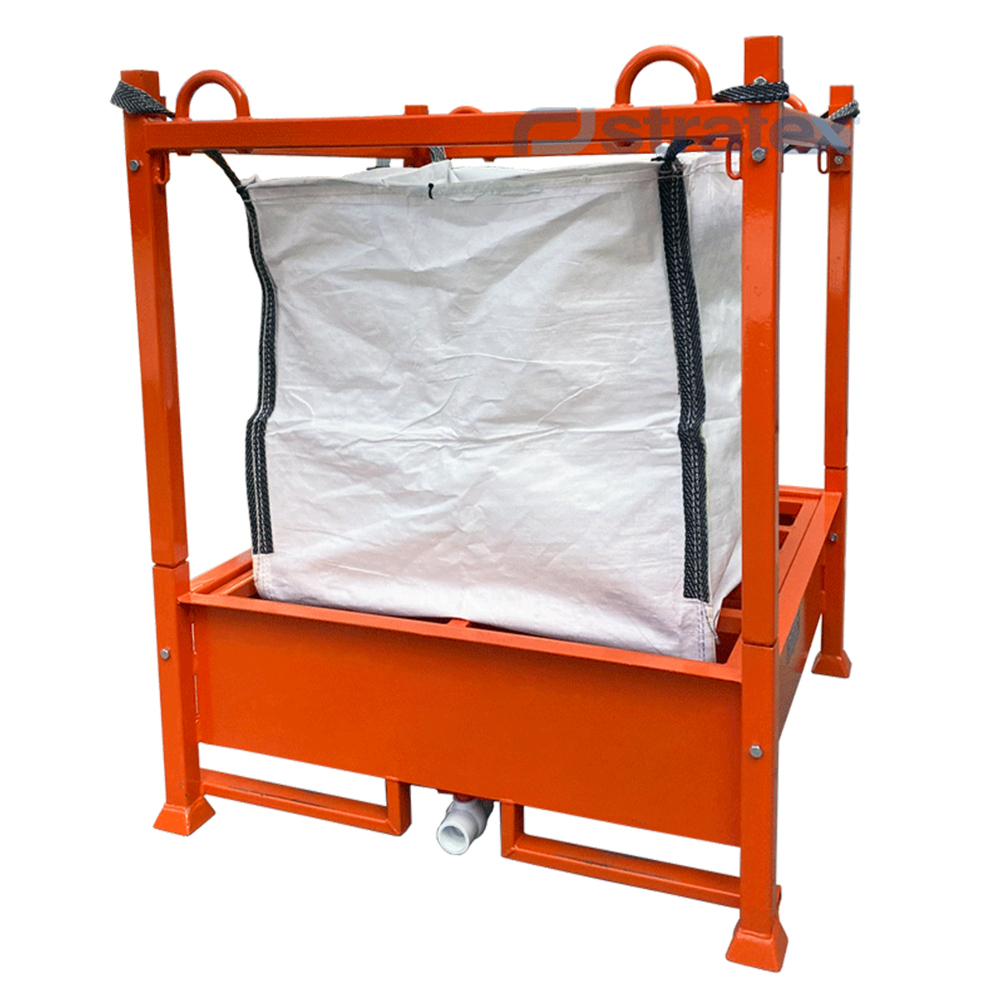

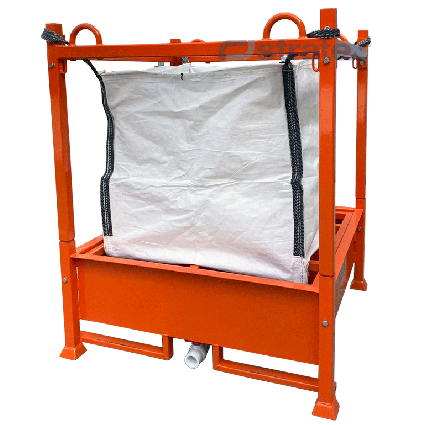

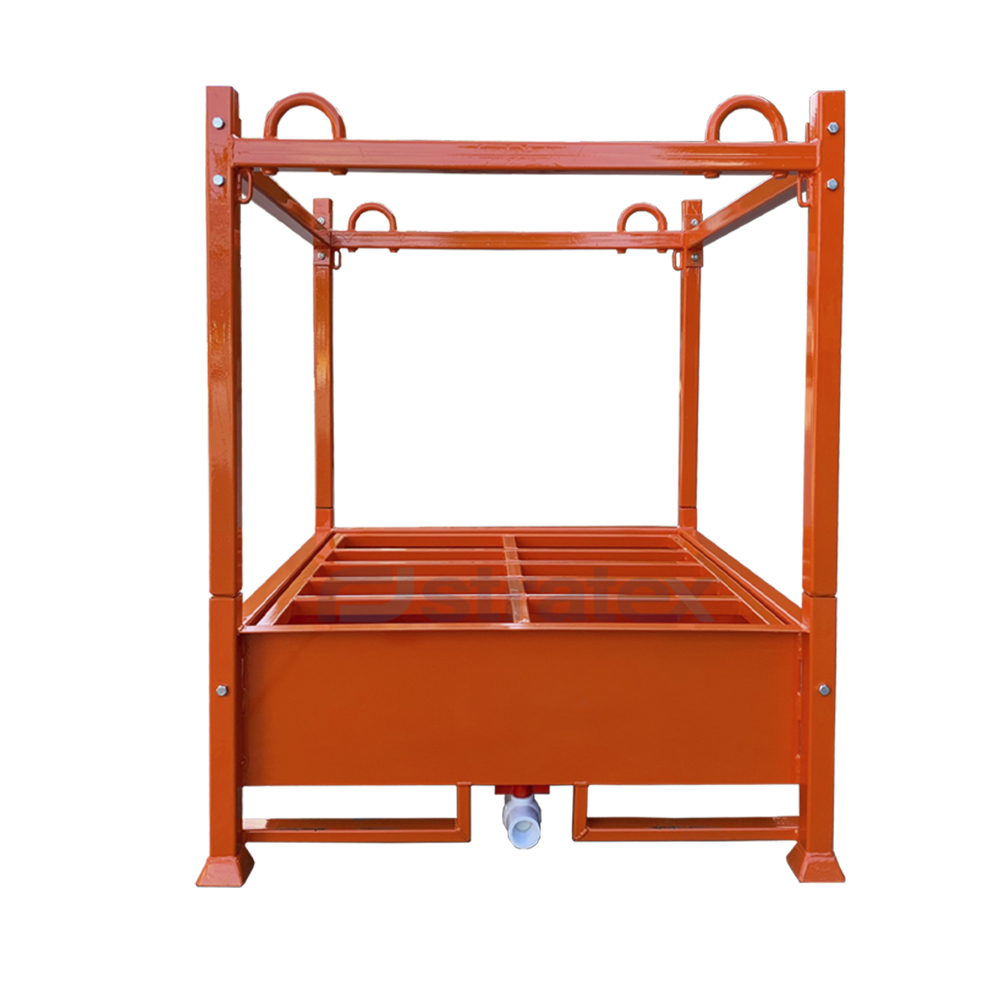

  • Concrete Washout Filtration Unit

    The Concrete Washout Filtration Unit is designed for the safe and convenient handling of concrete washwater by dealing with the harmful waste on site. The purpose constructed filtration bag is manufactured from a 300gsm, 900mm cube non-woven geotextile fabric inner layer with a bulk bag protective external. Sand, gravel and suspended concrete particles as fine as 80 microns are separated from the concrete slurry generated from the washout of concrete trucks and other equipment onsite and from saw cutting, core drilling, grinding and grooving concrete. Excess water passes through the filter bag and is captured in the holding tank below for testing and treatment.  This unit can also be used as a dewatering station for filtering sediment laden water on sites that need to control the amount of sediment or pollution runoff.

    Features:

    • Allows best practice and EPA compliance for handling concrete slurry onsite
    • Suits concrete slurry from truck & equip washout, concrete cutting, coring & grinding
    • Can be used for pumping and filtering sediment from silt laden water
    • Filters and separates washout particles to 80 microns from slurry water
    • Filter bag is suspended from frame for easy removal when full by crane or forklift
    • Washout up to 80 trucks before replacing filter bag (1 filter bag supplied with unit, additional filter bags available separately CSS115FB)
    • Wastewater in tank can be tested and treated without the need for off-site processing
    • 50mm valve fitted standard
    • Fork guides and crane lugs fitted for easy relocation around the site
    • Enamel paint finish

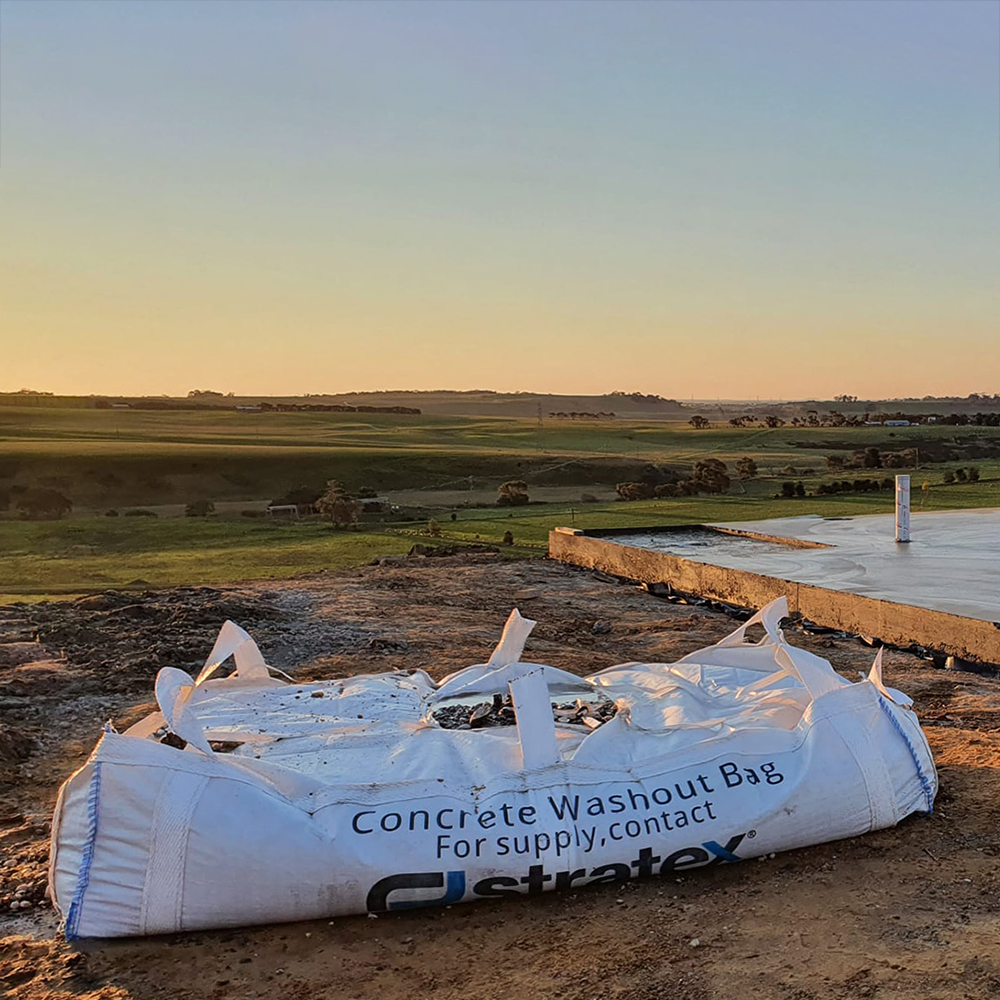

  • Concrete Washout Bag, 3000Kg – 180 x 120 x 46 cm

    The Stratex Concrete Washout Bag provides a quick and convenient solution to contain all concrete washout waste. The bag is simply placed under the chute or hopper and the slurry is contained in the plastic/polyethylene inner liner in the bag.

    When the concrete is set, the bag is forkliftable with built in loops for safe and easy transportation to an offsite location. All bags are fully tested and compliant with Australian Standard AS3668-1989 and have safe working loads listed below.

    Once set, the Concrete Washout Bag and its contents creates a versatile secondary product to use for car park walls, low retaining walls or designated compounds. The bags are perfect for use in applications such as Civil Construction, Road Construction & Commercial Construction.

    • Dimensions: 180cmL x 120cmW x 46cmH
    • Capacity: 0.99 cubic metres
    • Safe Working Load: 3000 Kg
    • Must only be lifted once waste has become solid

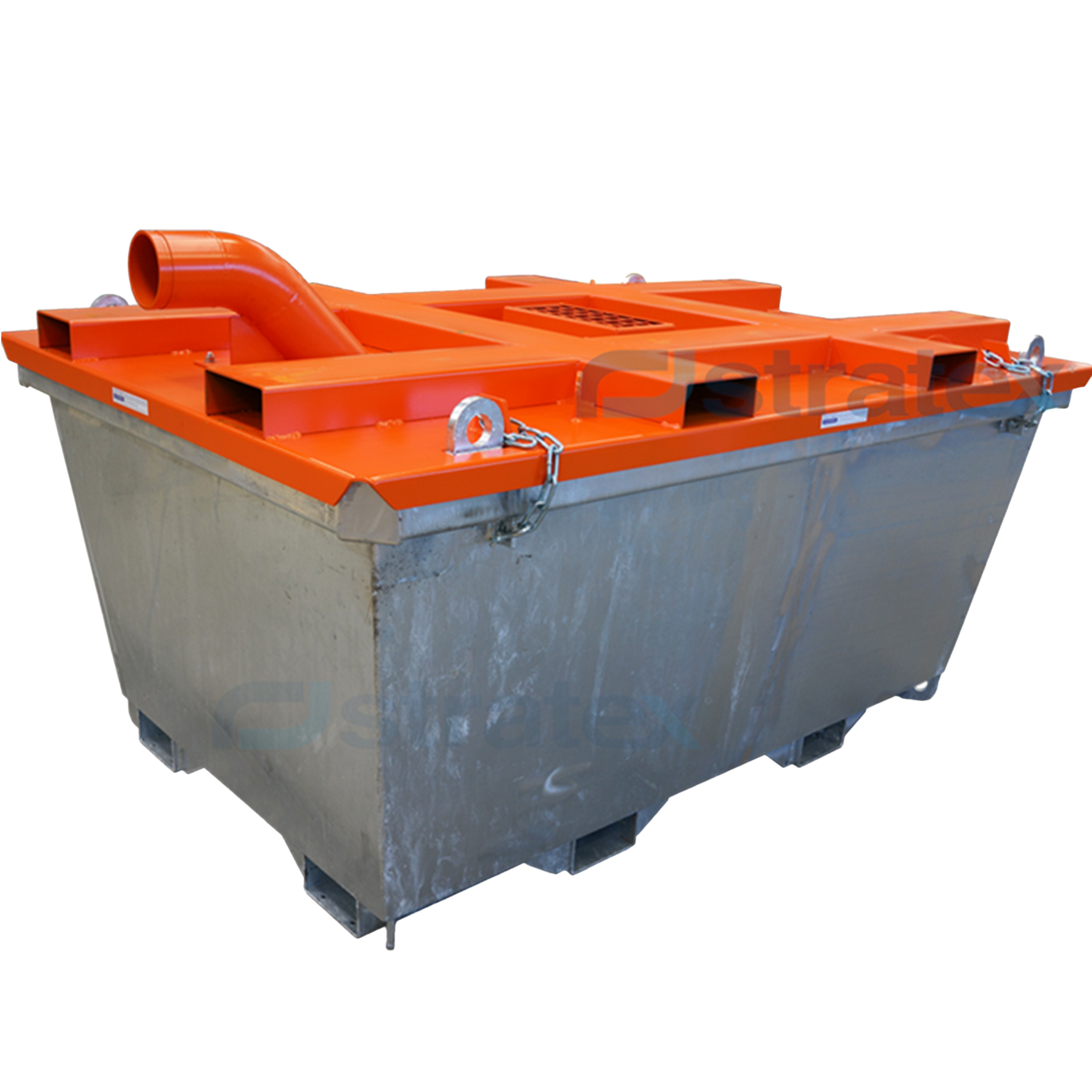

  • Concrete Washout Bin – 0.85cu.m

    The CPC Concrete Washout Bin is a safe, effective on-site solution for handling line cleans of boom and line concrete pumps.  Designed for optimal safety, its heavy-duty construction with waste intake pipe and air vent removes the risk of injury caused by blowouts during line cleaning.  Available in 3 options, the containment bin ensures EPA compliance by preventing pollution from run off and cleanly stores cement waste.  Disposable concrete washout plastic liners are available to make collection and disposal of waste easy, fast and cost effective.



    FEATURES:

    • Suitable for use with boom and line concrete pumps
    • Can safely be used with compressed air and water line cleans
    • Easily removable exhaust air vent for sponge recovery
    • Lid secured to bin by safety chains in 4 points
    • Lid fitted with crane lugs and fork pockets for easy fit up and removal
    • Bin fitted with crane lugs for both lifting and up-ending load and 4-way entry fork pockets
    • 125mm NB waste intake pipe with CIFA collar fitted standard for quick and safe connection
    • Disposable plastic liner included and available for reorder (CPC17DPL or CPC23DPL)
    • Enamel paint finish lid and galvanised finish bin
    • Capacity: 0.85 cu.m
    • Working Load Limit: 2000kg
    • Dimensions: 1180x1290x1350mm
    • Unit Weight: 242kg
  • Concrete Washout Bin – 1.3cu.m

    The CPC Concrete Washout Bin is a safe, effective on-site solution for handling line cleans of boom and line concrete pumps.  Designed for optimal safety, its heavy-duty construction with waste intake pipe and air vent removes the risk of injury caused by blowouts during line cleaning.  Available in 3 options, the containment bin ensures EPA compliance by preventing pollution from run off and cleanly stores cement waste.  Disposable concrete washout plastic liners are available to make collection and disposal of waste easy, fast and cost effective.



    FEATURES:

    • Suitable for use with boom and line concrete pumps
    • Can safely be used with compressed air and water line cleans
    • Easily removable exhaust air vent for sponge recovery
    • Lid secured to bin by safety chains in 4 points
    • Lid fitted with crane lugs and fork pockets for easy fit up and removal
    • Bin fitted with crane lugs for both lifting and up-ending load and 4-way entry fork pockets
    • 125mm NB waste intake pipe with CIFA collar fitted standard for quick and safe connection
    • Disposable plastic liner included and available for reorder (CPC17DPL or CPC23DPL)
    • Enamel paint finish lid and galvanised finish bin
    • Capacity: 1.3 cu.m
    • Working Load Limit: 2000kg
    • Dimensions: 1830x1185x1280mm
    • Unit Weight: 380kg
  • Concrete Washout Bin – 2.5cu.m

    The CPC Concrete Washout Bin is a safe, effective on-site solution for handling line cleans of boom and line concrete pumps.  Designed for optimal safety, its heavy-duty construction with waste intake pipe and air vent removes the risk of injury caused by blowouts during line cleaning.  Available in 3 options, the containment bin ensures EPA compliance by preventing pollution from run off and cleanly stores cement waste.  Disposable concrete washout plastic liners are available to make collection and disposal of waste easy, fast and cost effective.



    FEATURES:

    • Suitable for use with boom and line concrete pumps
    • Can safely be used with compressed air and water line cleans
    • Easily removable exhaust air vent for sponge recovery
    • Lid secured to bin by safety chains in 4 points
    • Lid fitted with crane lugs and fork pockets for easy fit up and removal
    • Bin fitted with crane lugs for both lifting and up-ending load and 4-way entry fork pockets
    • 125mm NB waste intake pipe with CIFA collar fitted standard for quick and safe connection
    • Disposable plastic liner included and available for reorder (CPC17DPL or CPC23DPL)
    • Enamel paint finish lid and galvanised finish bin
    • Capacity: 2.5 cu.m
    • Working Load Limit: 2000kg
    • Dimensions: 2340x1545x1316mm
    • Unit Weight: 600kg

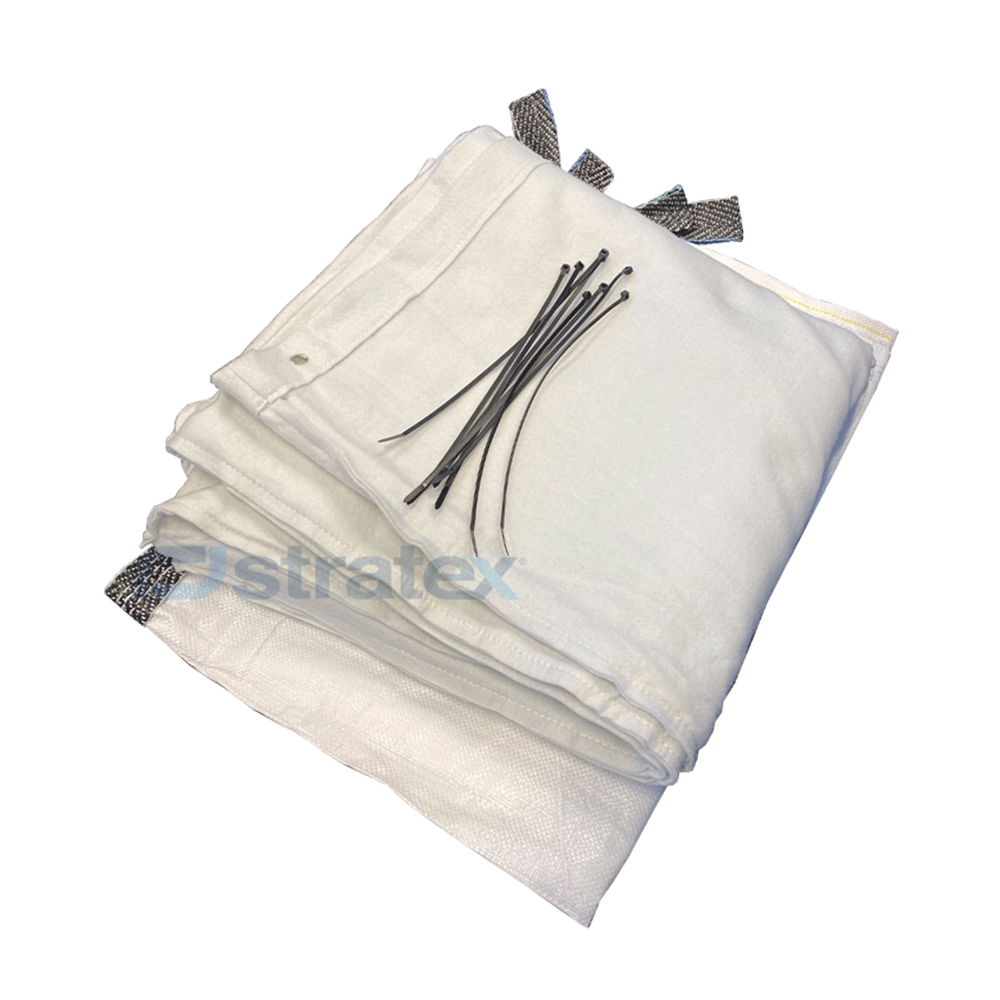

  • Concrete Washout Filtration Unit Filter Bag

    The CSS115 Filtration Unit is designed for the safe and convenient handling of concrete washwater by dealing with the harmful waste on site. The purpose constructed filtration bag is manufactured from a 300gsm, 900mm cube non-woven geotextile fabric inner layer with a bulk bag protective external. Sand, gravel and suspended concrete particles as fine as 80 microns are separated from the concrete slurry generated from the washout of concrete trucks and other equipment onsite and from saw cutting, core drilling, grinding and grooving concrete. Excess water passes through the filter bag and is captured in the holding tank below for testing and treatment.  This unit can also be used as a dewatering station for filtering sediment laden water on sites that need to control the amount of sediment or pollution runoff.

    Features:

    • Allows best practice and EPA compliance for handling concrete slurry onsite
    • Suits concrete slurry from truck & equip washout, concrete cutting, coring & grinding
    • Can be used for pumping and filtering sediment from silt laden water
    • Filters and separates washout particles to 80 microns from slurry water
    • Filter bag is suspended from frame for easy removal when full by crane or forklift
  • Concrete Washout Bin – 2.4cu.m

    The CPC Concrete Washout Bin is a safe, effective on-site solution for handling line cleans of boom and line concrete pumps.  Designed for optimal safety, its heavy-duty construction with waste intake pipe and air vent removes the risk of injury caused by blowouts during line cleaning.  Available in 3 options, the containment bin ensures EPA compliance by preventing pollution from run off and cleanly stores cement waste.  Disposable concrete washout plastic liners are available to make collection and disposal of waste easy, fast and cost effective.



    FEATURES:

    • Suitable for use with boom and line concrete pumps
    • Can safely be used with compressed air and water line cleans
    • Easily removable exhaust air vent for sponge recovery
    • Lid secured to bin by safety chains in 4 points
    • Lid fitted with crane lugs and fork pockets for easy fit up and removal
    • Bin fitted with crane lugs for both lifting and up-ending load and 4-way entry fork pockets
    • 125mm NB waste intake pipe with CIFA collar fitted standard for quick and safe connection
    • Disposable plastic liner included and available for reorder (CPC17DPL or CPC23DPL)
    • Enamel paint finish lid and galvanised finish bin
    • Capacity: 2.4 cu.m
    • Working Load Limit: 5000kg
    • Dimensions: 2340x1540x1324mm
    • Unit Weight: 850kg
